2P Series 8 Pin Plastic Push Pull Connectors For Transcranial Doppler Ultrasound

Product Categories
Shenzhen MOCO Interconnect Co., Ltd.
Contact Now

2P Series 8 Pin Plastic Push Pull Connectors For Transcranial Doppler Ultrasound

Brand Name : MOCO

Model Number : 2PT1G08 2PZ2G08

Certification : UL/CE/RoHs/ISO9001

Place of Origin : Shezhen, China

MOQ : 10pcs

Payment Terms : T/T, Palpay,, Western Union

Supply Ability : 200000pcs/month

Delivery Time : 7-10 working days after simple confirmation

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

P/N : 2P series 8 pin plastic medical push pull connector for Transcranial Doppler Ultrasound

pin : 8 pin

gender : male & female

Endurance (Shell) : 5000 mating cycles

Shock Resistance : 100 g [ 6 ms]

IP Rating : 50

Contact Now

2P series 8 pin plastic medical push pull connector for Transcranial Doppler Ultrasound

Main features:

  • Smart push-pull self-latching system;
  • Solder or PCB contacts;
  • High packing density for space saving;
  • Wide Choice of colors for easy identification ( blue,
  • yellow, red, black, grey, green);

MOCO P series connectors are plastic Push-Pull connectors. They are widely used in medical devices, such as patient monitor, respirator,anesthetic machine.

T1 is a plastic straight plug , and Z2 is female connector with two nuts.

Dimensions and Parameters

2P Series 8 Pin Plastic Push Pull Connectors For Transcranial Doppler Ultrasound

2P Series 8 Pin Plastic Push Pull Connectors For Transcranial Doppler Ultrasound

MOCO P / N 2PT1G08CLA 2PZ2G08CLL
Insert8 low voltage
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

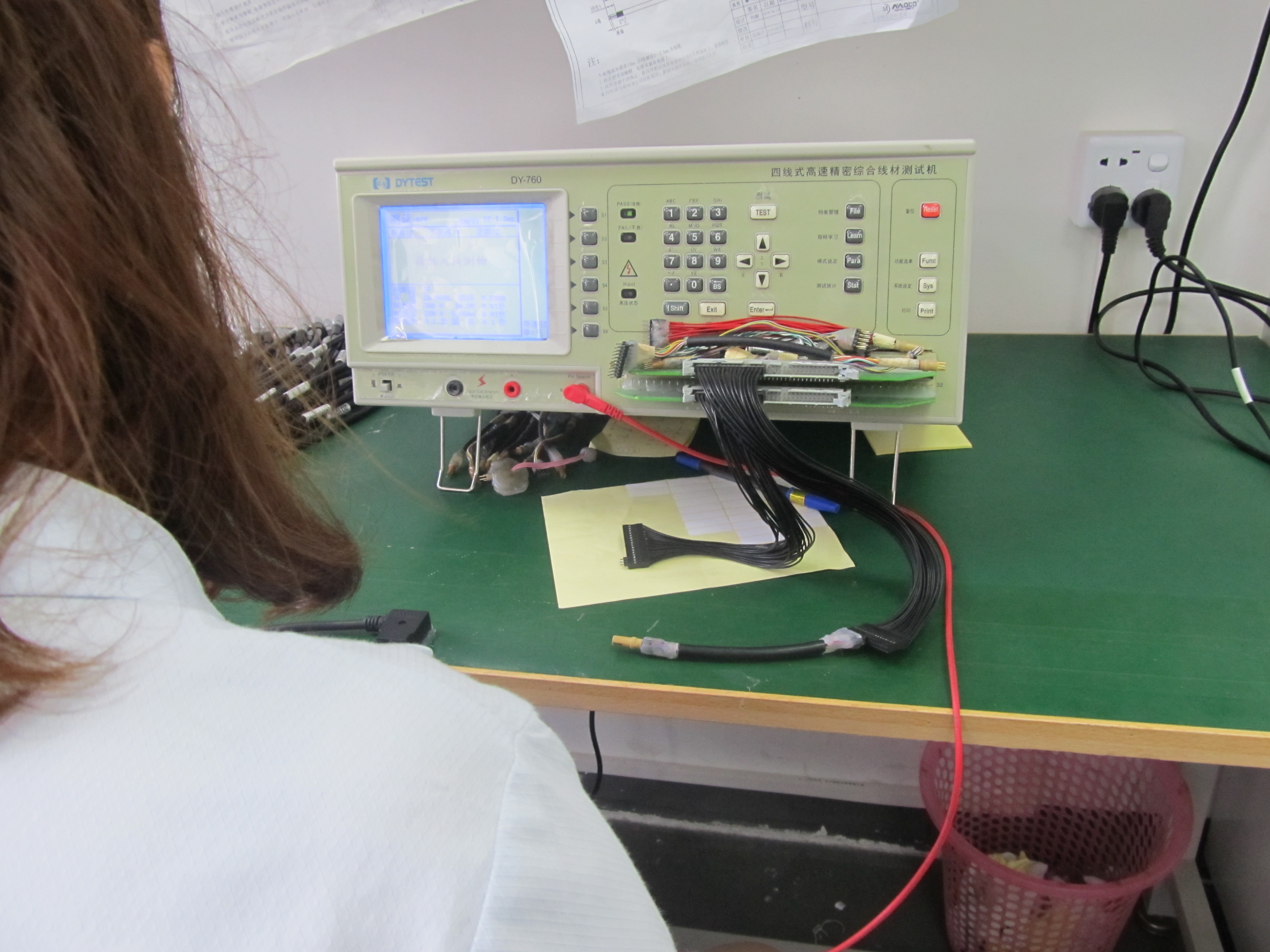

Testing Equipments:

2P Series 8 Pin Plastic Push Pull Connectors For Transcranial Doppler Ultrasound

We also provide cable assemblies service.

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
