Female Coaxial Cable Connectors , Coaxial Cable Elbow Connector Without Nut

Brand Name : MOCO

Model Number : FLA 00 250 ERA.00.250

Certification : UL/CE/RoHs/ISO9001

Place of Origin : Shezhen, China

MOQ : 10pcs

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 200000pcs/month

Delivery Time : 7-10 working days after simple confirmation

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

Product Name : 00S male elbow without nut for bend relief and female coaxial cable connectors

number of contacts : unipole

gender : male

insulator material : PPS

Endurance (Shell) : 5000 mating cycles

Vibration : 15 g [10 Hz - 2000 Hz]

Shock Resistance : 100 g [ 6 ms]

Salt Spray Corrosion : >144 hr

IP Rating : 50

Material : chrome plated brass

Contact Now

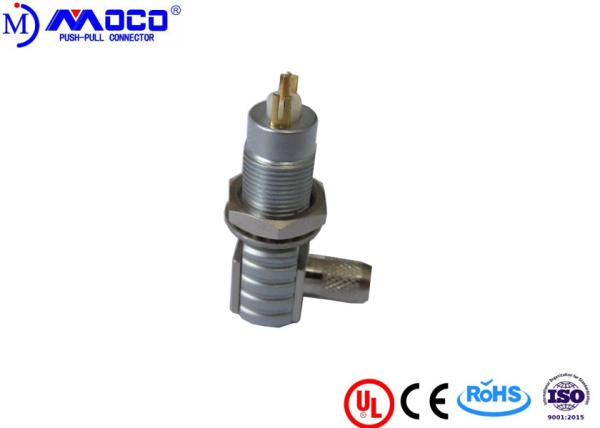

00S male elbow without nut for bend relief and female coaxial cable connectors

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);

- High packing density for space savings;

- 360°screening for full EMC shielding.

00S series is unipole and coaxial connector, often used in Ultronic prob cable. T3 is elbow (90°) plug with cable collect. Z1 is fixed socket, nut fixing.

Dimensions and Parameters

Female Coaxial Cable Connectors , Coaxial Cable Elbow Connector Without NutFemale Coaxial Cable Connectors , Coaxial Cable Elbow Connector Without Nut

Female Coaxial Cable Connectors , Coaxial Cable Elbow Connector Without Nut

MOCO P / N FLA 00 250 ERA.00.250
Insert unipole low voltage
Configuration Brass (gold plated)
Insulator PPS
Endurance (Shell) 5000 mating cycles
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min) 75 dB (10 MHz)
P op (max) 60 bar (870 psi)

Female Coaxial Cable Connectors , Coaxial Cable Elbow Connector Without Nut

We can also provide cable assemblies service.

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
